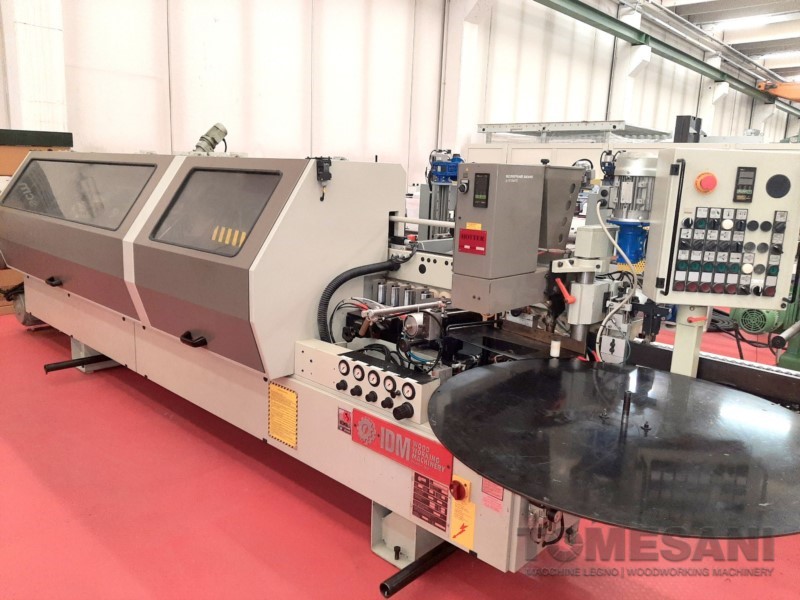

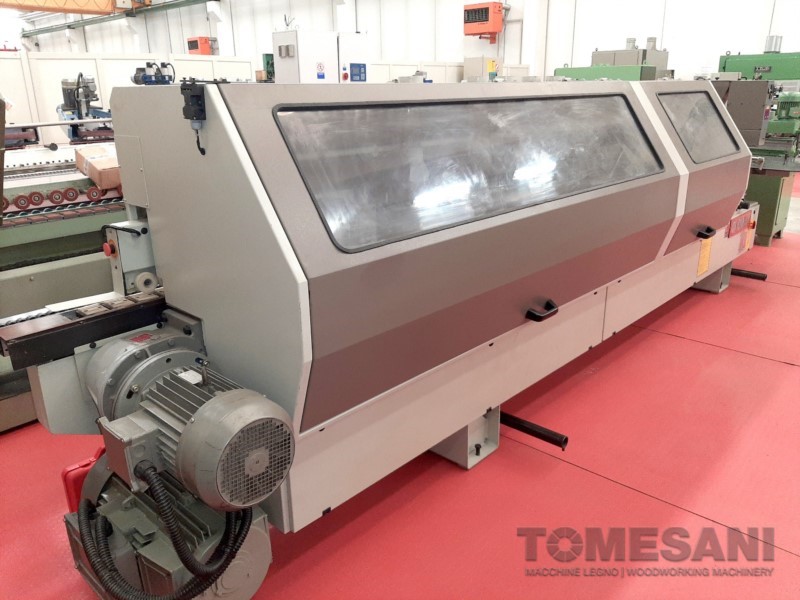

IDM - SCM GROUP IDIMATIC 49-20

Automatic edge bander for the application of edges in wood, pvc, veneer, melamine, abs for furniture, furnishings, kitchens, bathrooms, doors, panels and various

• Technical data:
• Min/max gluing height mm 10/50
• Min/max edge thickness mm 0,4/20
• Min panel width mm 60
• Min panel length mm 140
• Adjustable feed speed m/min 12/18
• Electric press lift
• Telescopic support for large panels
• Soundproof cabin
•
• Composition:
• Anti-adhesion unit: spreads anti-adhesive liquid on the upper and lower surfaces of the panel

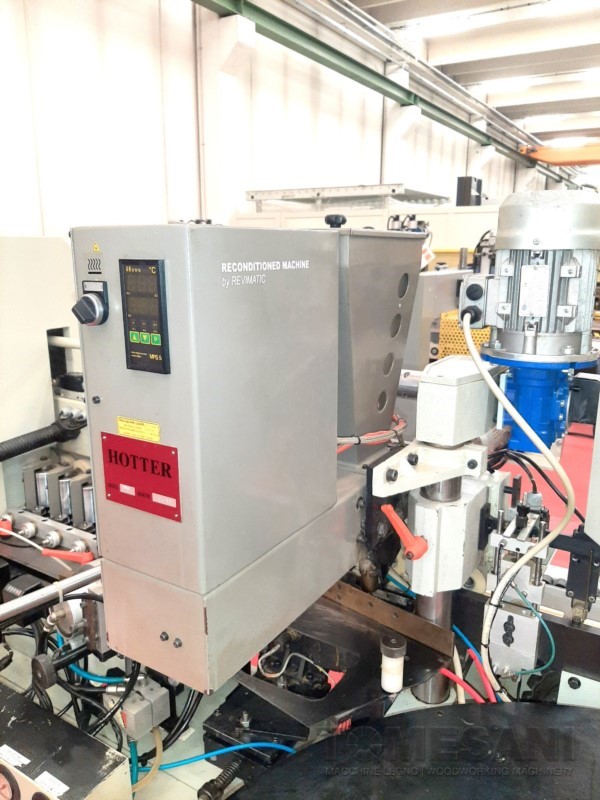

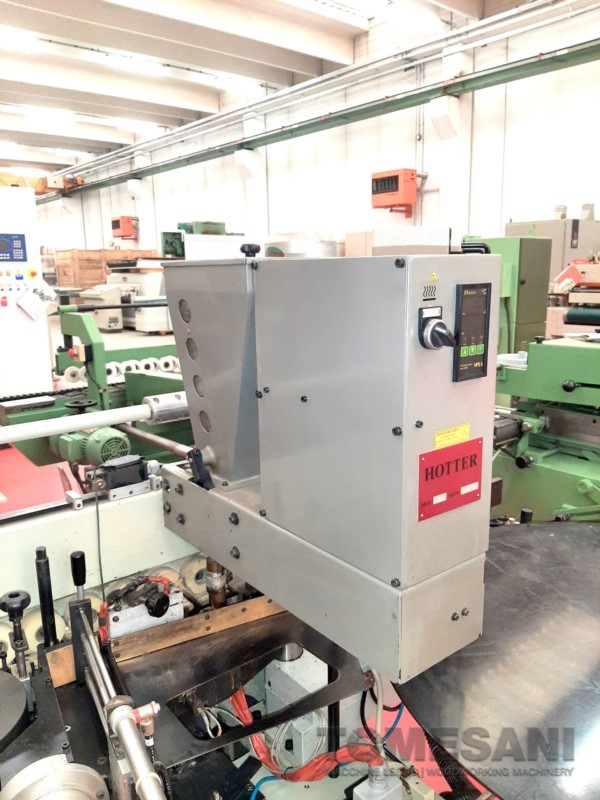

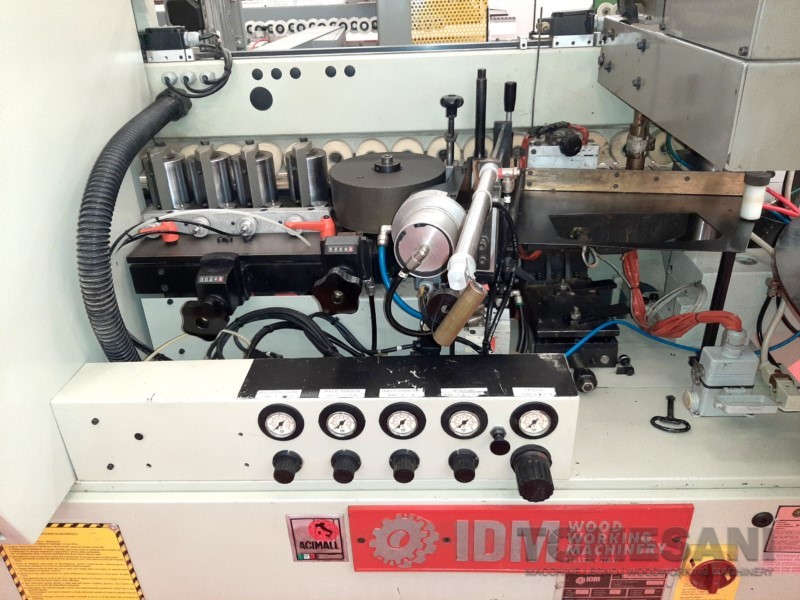

• Gluing unit with pre-melting unit
• Pressure rollers

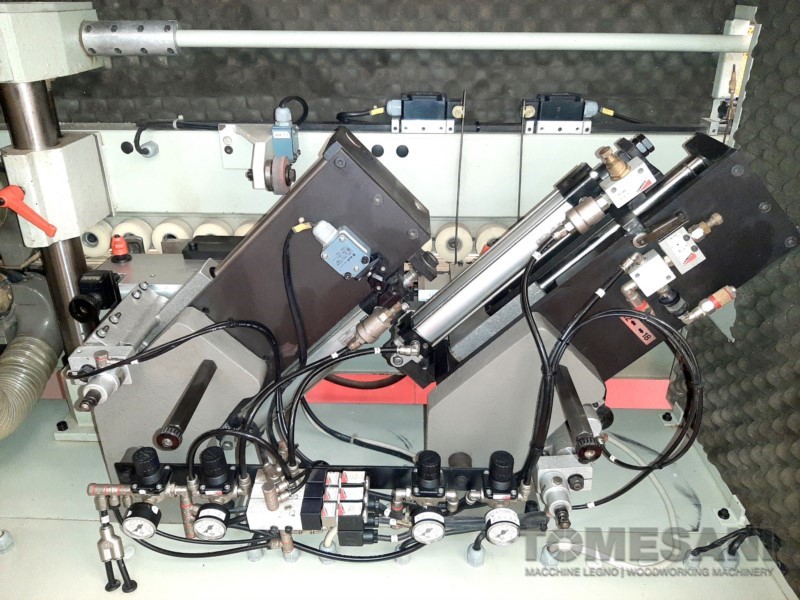

• End trimmer unit for front and rear vertical cutting of excess edging - N° 2 motors 0,5 Kw at 12000 rpm - Tool diameter mm 110

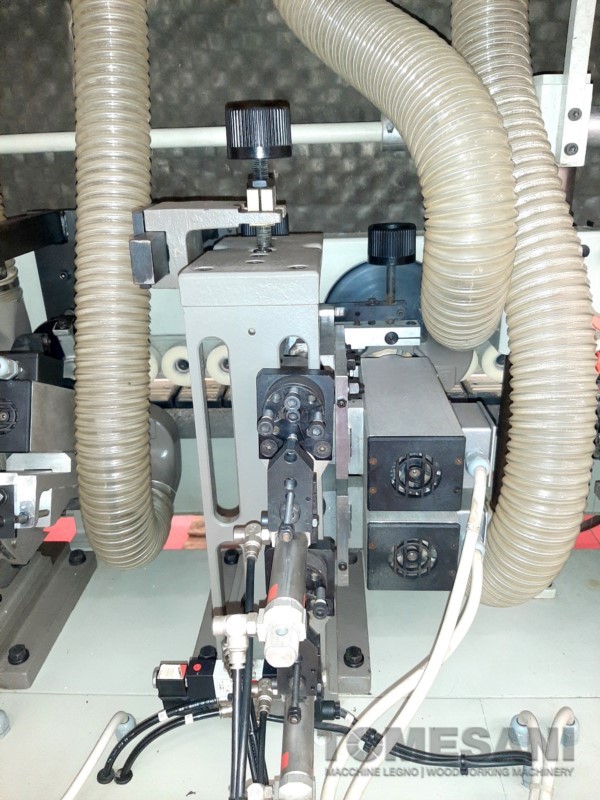

• Top/bottom trimmer unit with superimposed motors for trimming the upper and lower  sides of the excess edge band  - N° 2 motors 0,5 Kw at 12000 rpm

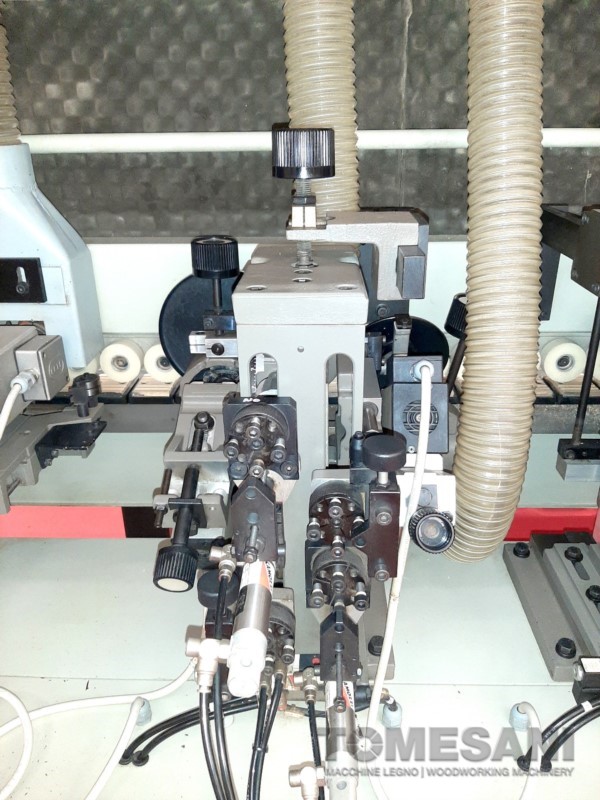

• Top/bottom trimmer and beveller unit for final upper and lower trimming of  excess edge band - N° 2 motors 0,5 Kw at 12000 rpm
• Manual turret device  - automatic positioning of the tool post and front copiers according to the different edge band thickness
• Routing unit makes through holes and non-through holes in the edged side and on the upper and lower parts of the panel and is time controlled

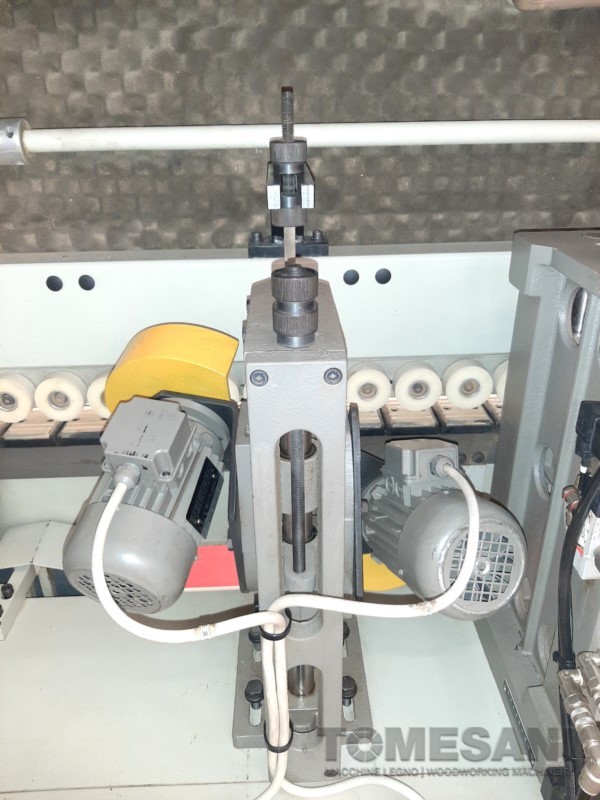

• Cleaning unit for brushing and polishing of the edge bands applied  - N° 2 motors 0,18 Kw  at 1400 rpm which can be inclined vertically between 0° and 30°
• Compressed air 7-8 bar
• Overall dimensions mm 5600 x 1000 x 1500 h
• Weight kg 2500
