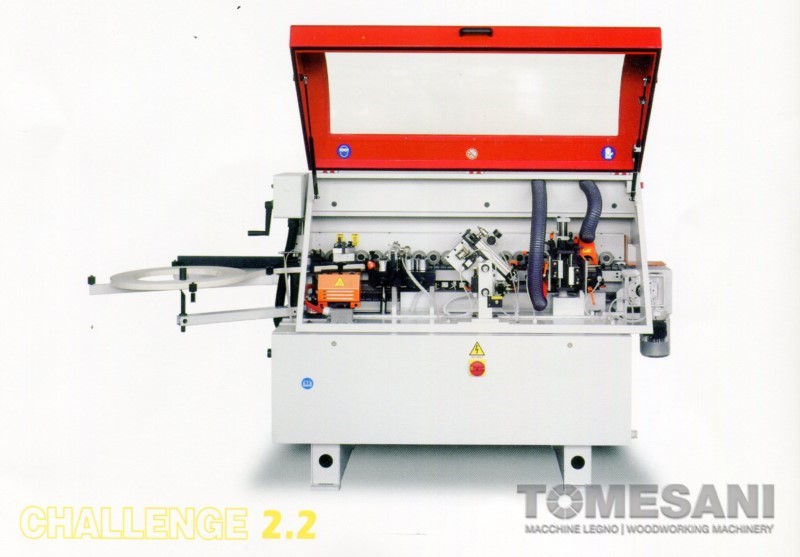

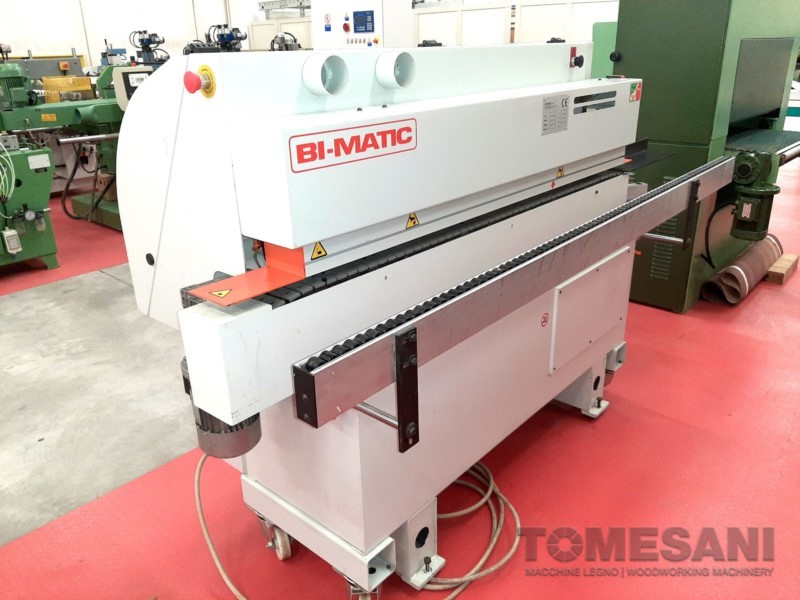

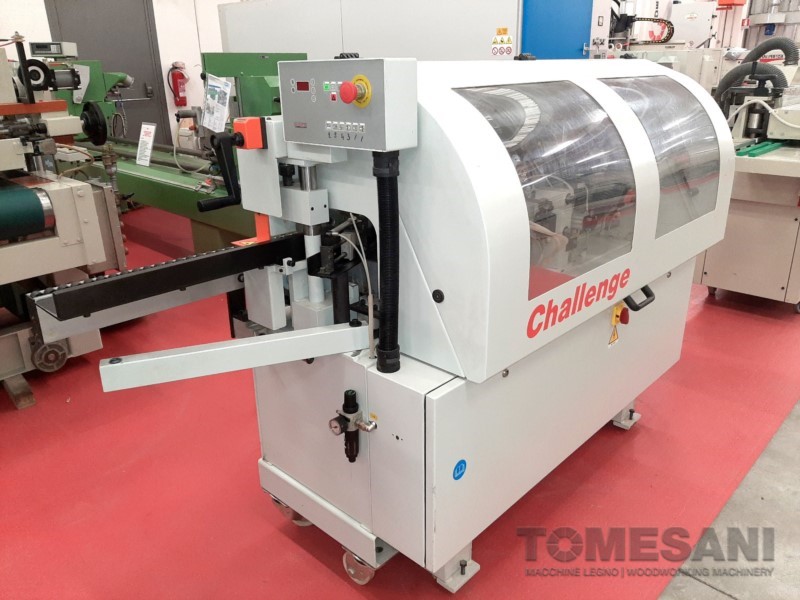

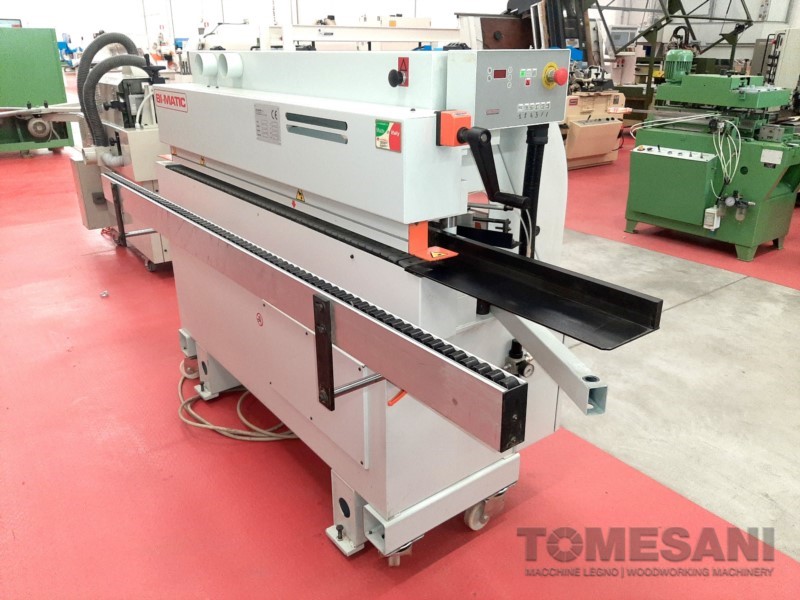

BIMATIC CHALLENGE 2.2 - Norme CE

Automatic edge bander for applying wood, veneer, pvc, abs, formica edges for joinery, furniture, kitchens, bathroom furniture, panels and various - CE Standard

• Technical data:
• Max edge thickness mm 3
• Max panel height mm 40
• Min panel width mm 60
• Min panel length mm 80
• Feed speed mt/min 7
•
• Composition:

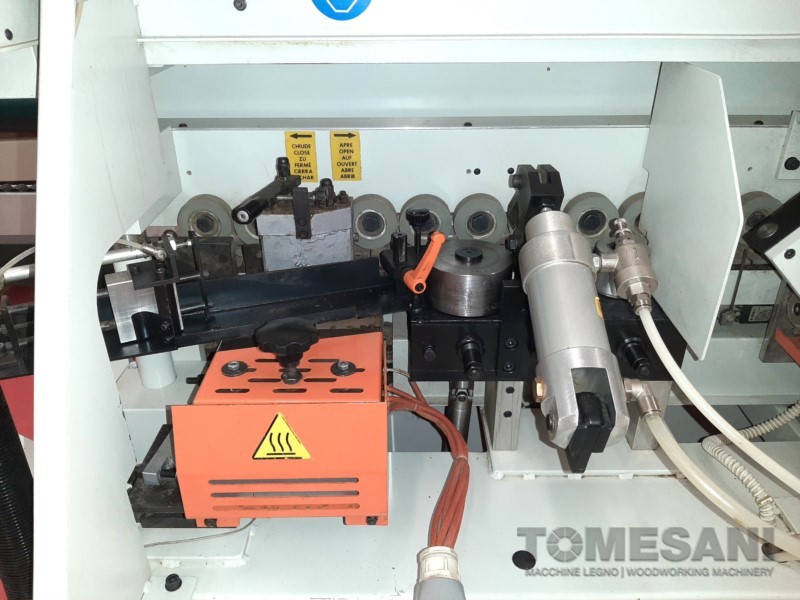

• Gluing unit: glue tank capacity lt 2

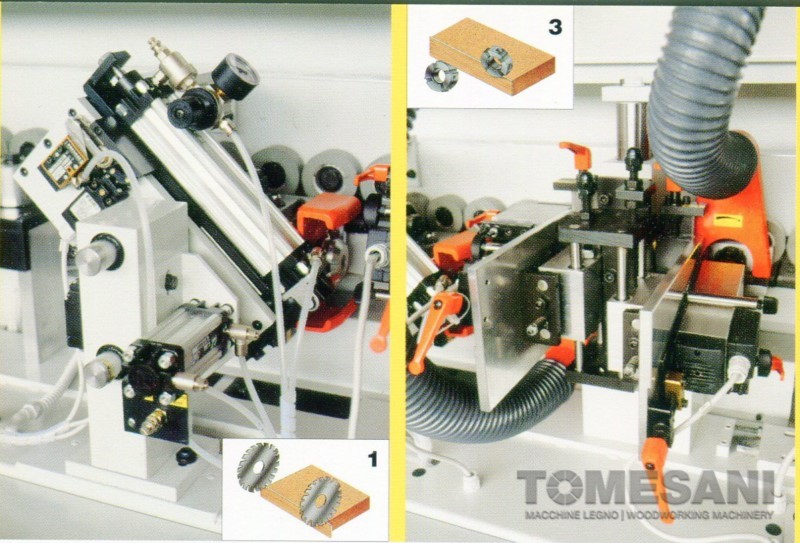

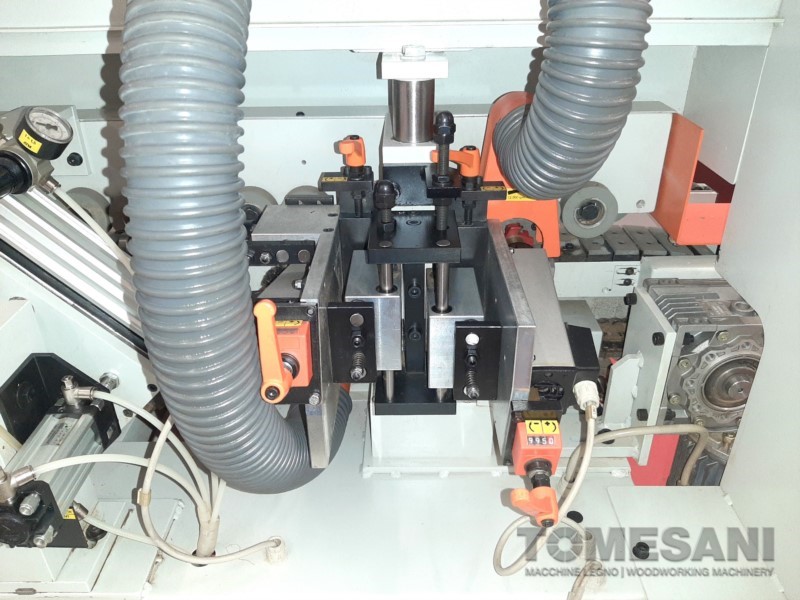

• Vertical twin-blade end cutting unit HF 12000 rpm

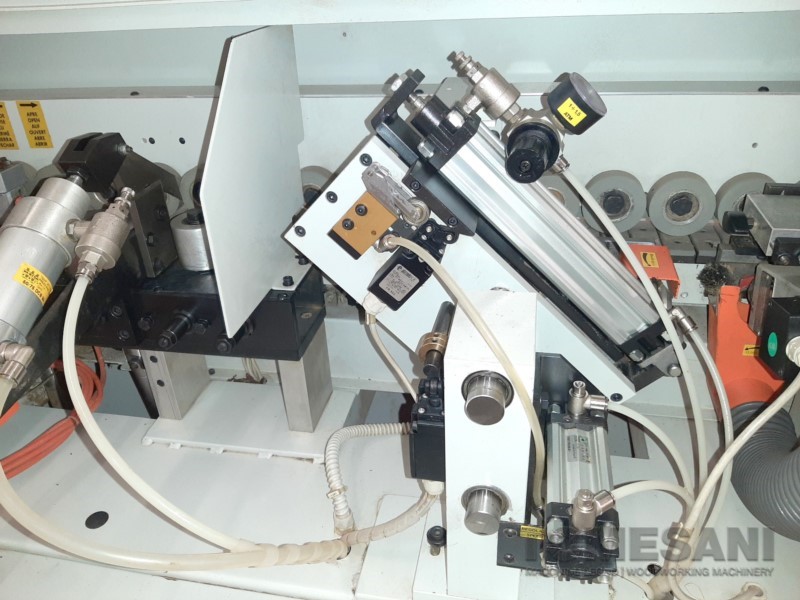

• Trimming unit HF 12000 rpm inclined at 15 degrees

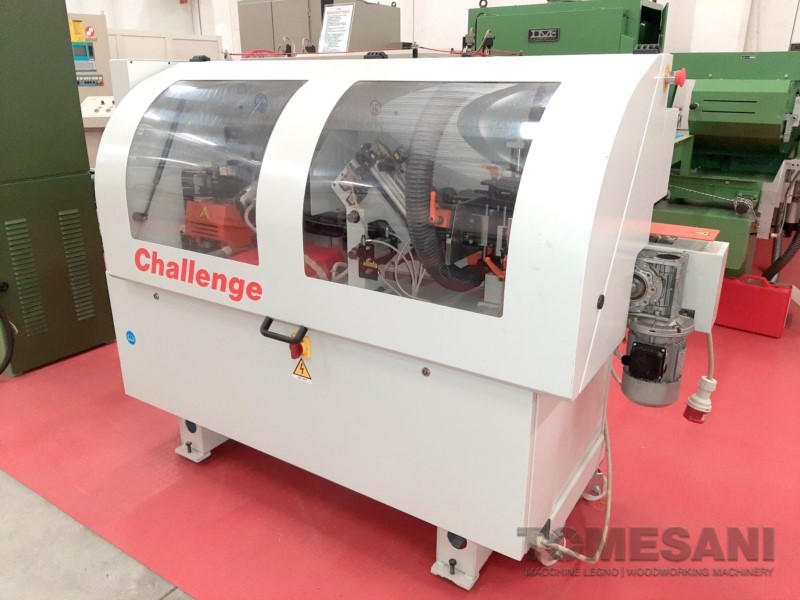

• Protection booth
• Manual vertical presser adjustment

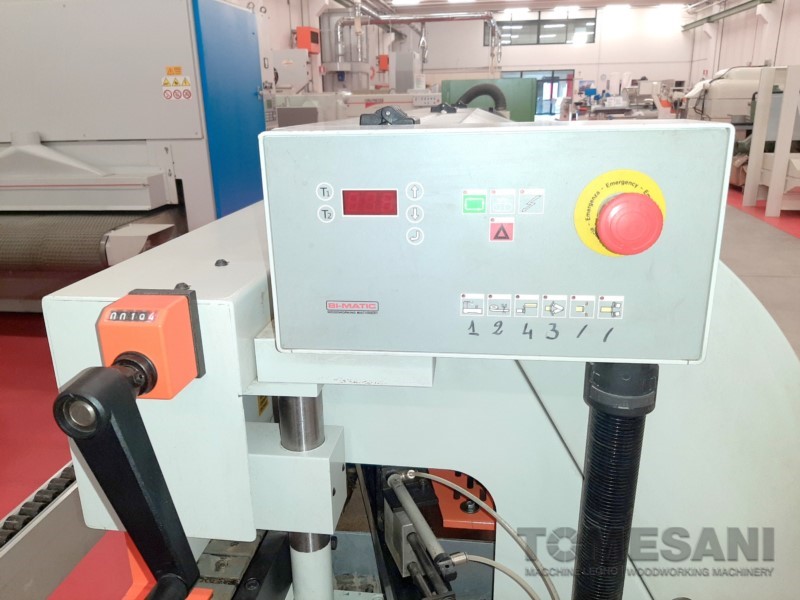

• Control panel
• Removable panel support roller conveyor

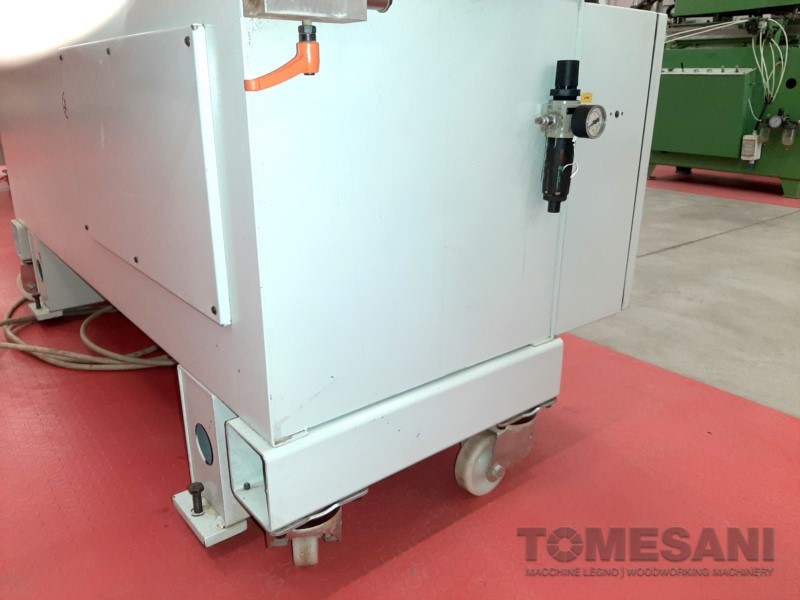

• Air pressure 6 bar
• Overall dimensions mm 2100 x 825 x 1380 h
• Weight kg 520
